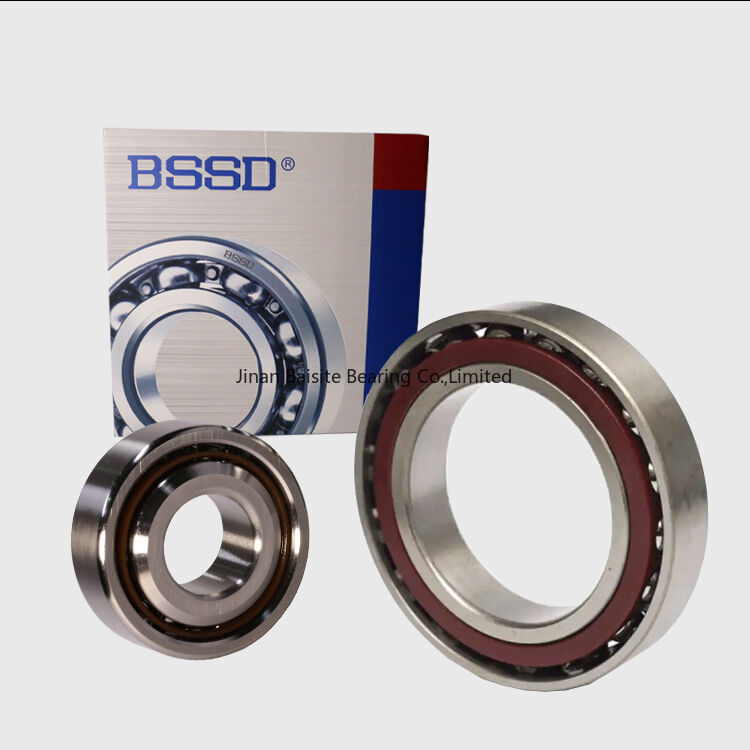

Angular Contact Ball Bearing
Update : 2019-08-27

Give us a message

Related products

  • BSSD Angular Contact Ball BearingS



    Descriptions

    Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

    The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.


    Features

    • High precision and high speed

    • High load carrying capacity

    • Good running properties

    • Easy mounting of universally matchable bearings


    Application

    Single row angular contact ball bearings can accommodate axial loads in one  direction only. This type of bearing is typically adjusted against a  second bearing.

    •   Machine Tools

    •   Agricultural machinery

    •   Construction equipment

    •   Engineering machinery


    Related Products

    Angular Contact Ball Bearings are available from BSSD in many designs, variants and sizes.  Some of the common series as below:

    • single row angular contact ball bearings (7000, 7200, 7300, 7400 series)

    • double row angular contact ball bearings (3200,3300)

    • four-point contact ball bearings (QJ200,QJ300)


    If you need help in selecting the best products for your particular application, please remember that design engineering and application assistance are available from BSSD as part of our value-added services designed to make your job easier.


    Please feel free to send us a message if you want to get  catalog and product specification for Angular Contact Ball Bearings including free CAD downloads.
